Gecko Xtreme 4-Berth Specs & Features

Gecko Extreme Offroad

4 Berth price starting from R555 000,00 inc vat* (*Excluding Optional Extras)

Spesifications

Gecko Offroad 4-Berth Spec Sheet

Dimensions

Internal floor to ceiling (headroom): 1910mm

Total length (including A-frame): 5360mm

Body length: 3950mm

Body width: 1940mm

Height from ground (roof closed): 2190mm

Height from ground (roof open): 2570mm

Ground clearance: 500mm

Tow ball height: 550mm

Track width: 1 600mm

Mass and Suspension

Tare: 1 320kg

GVM: 1 900kg

Axle (braked): 2 000kg

Axel load capacity: 2 500kg

Gas Shock Absorbers: Gabriel Safari

Tyres: 245/75/R15

Chassis: Steel galvanised Leaf springs

12 Volt and 220 Volt Power Supply

MK6 Power panel complete battery management including:

220 volt to 12 volt fast and trickle charge

DC-DC 12 volt/12 amp charger

Solar panel MPPT controller (maximum 270 watt)

Digital monitor for voltage and current with battery under voltage lockout

Integrated 220 volt earth leakage and overload circuit breaker

Brad Harrison connection for fridge/freezer

Plug Socket 220 Volt

1 x fridge

3 x external

2 x under bench

2 x internal

1 x loadbox

12 Volt Lights

7 x 6-LED dual white and amber

1 x caralight

2 x bedside light

12 Volt Socket

1 x fridge

1 x other

1 x USB

Battery 105Amp Hour Deep Cycle

Input 50 Amp Brad Harrison Plugs

1 x charging from car

1 x charging from solar (solar panel excluded)

Z

Standard Accessories

and Features

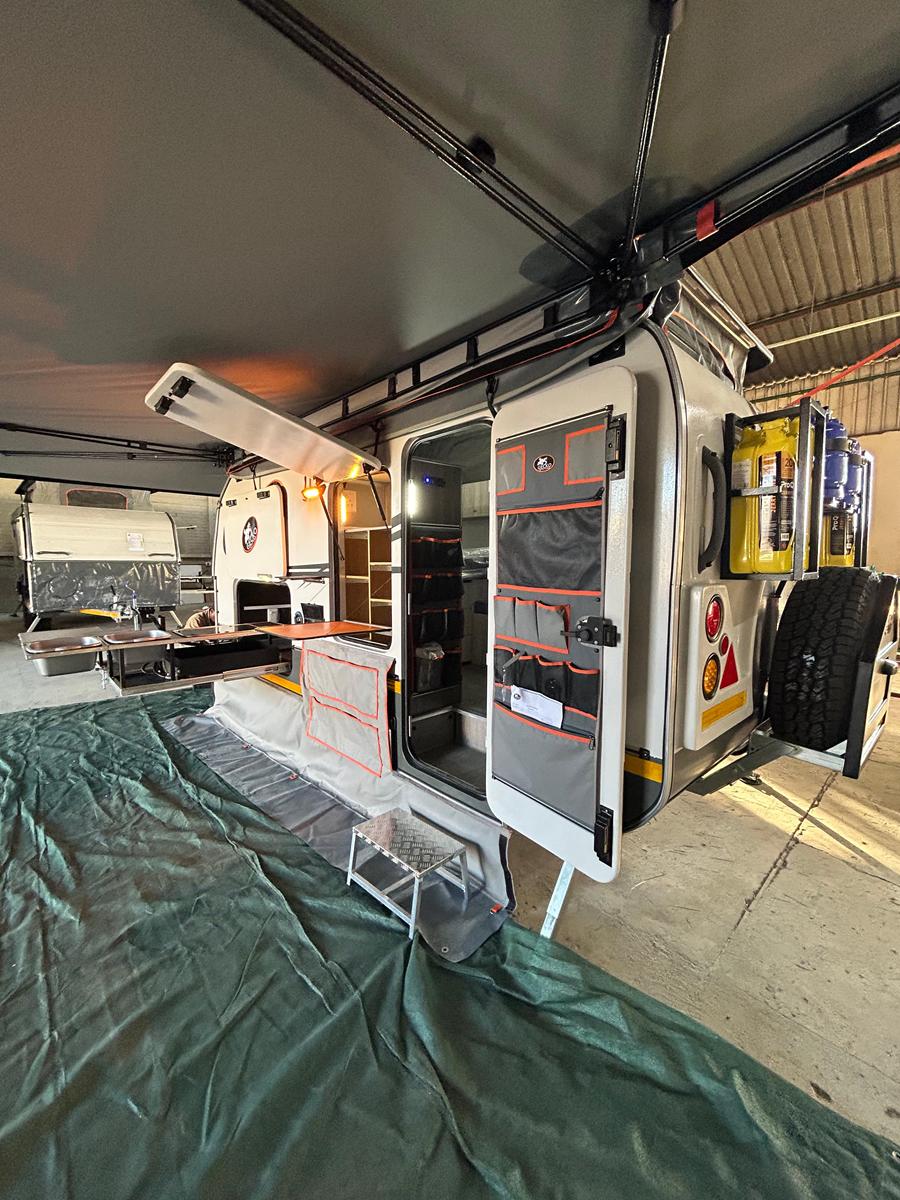

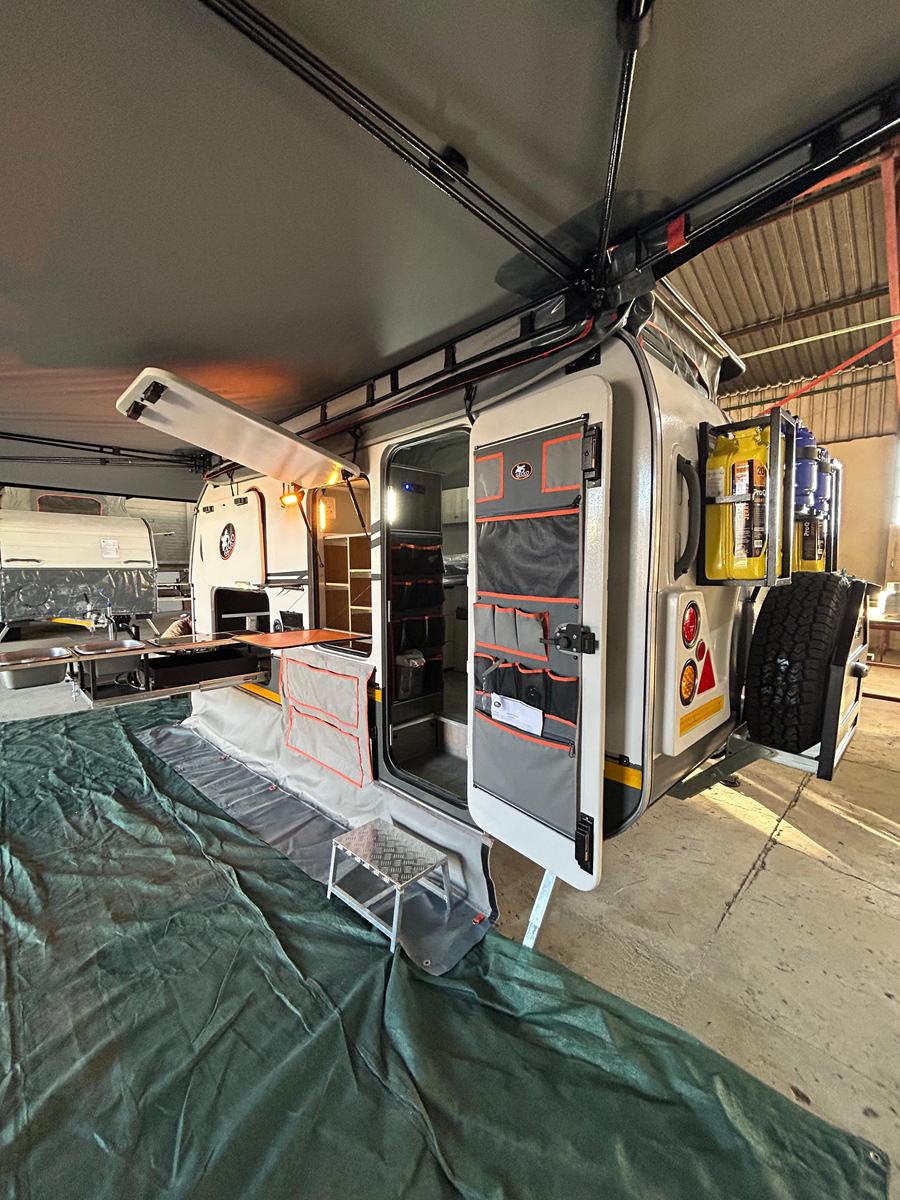

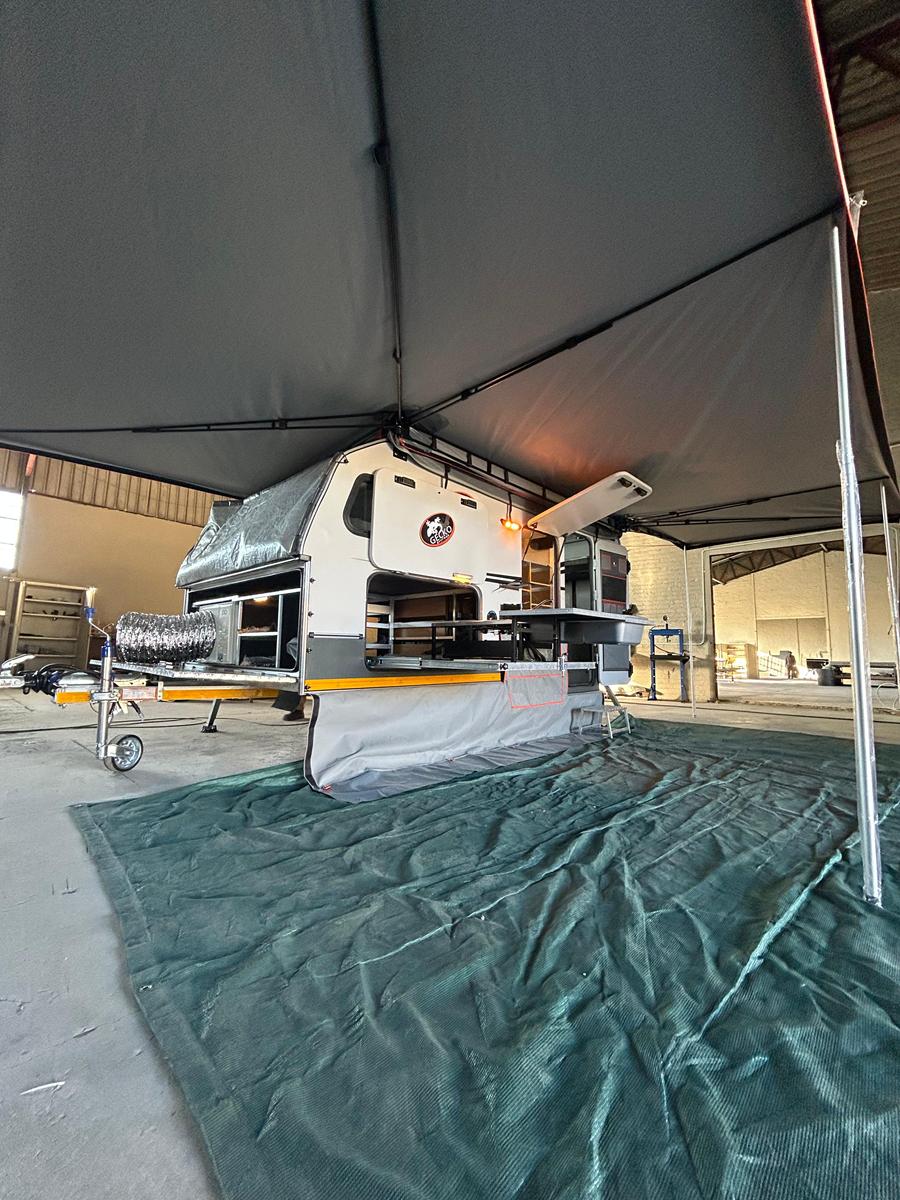

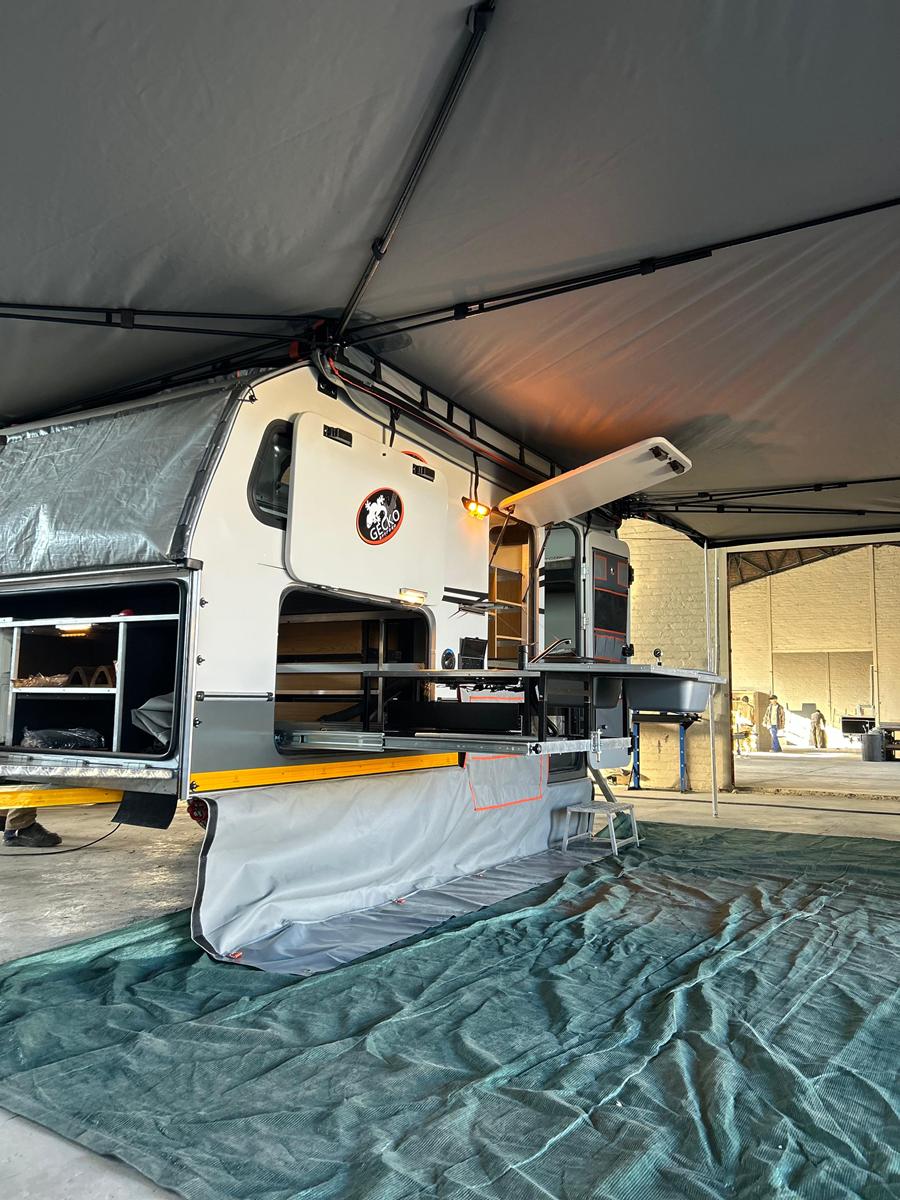

Roll out roof canopy (awning) in a weatherproof bag on the side of the caravan, complete with zips to take optional side and front walls

Draft skirt

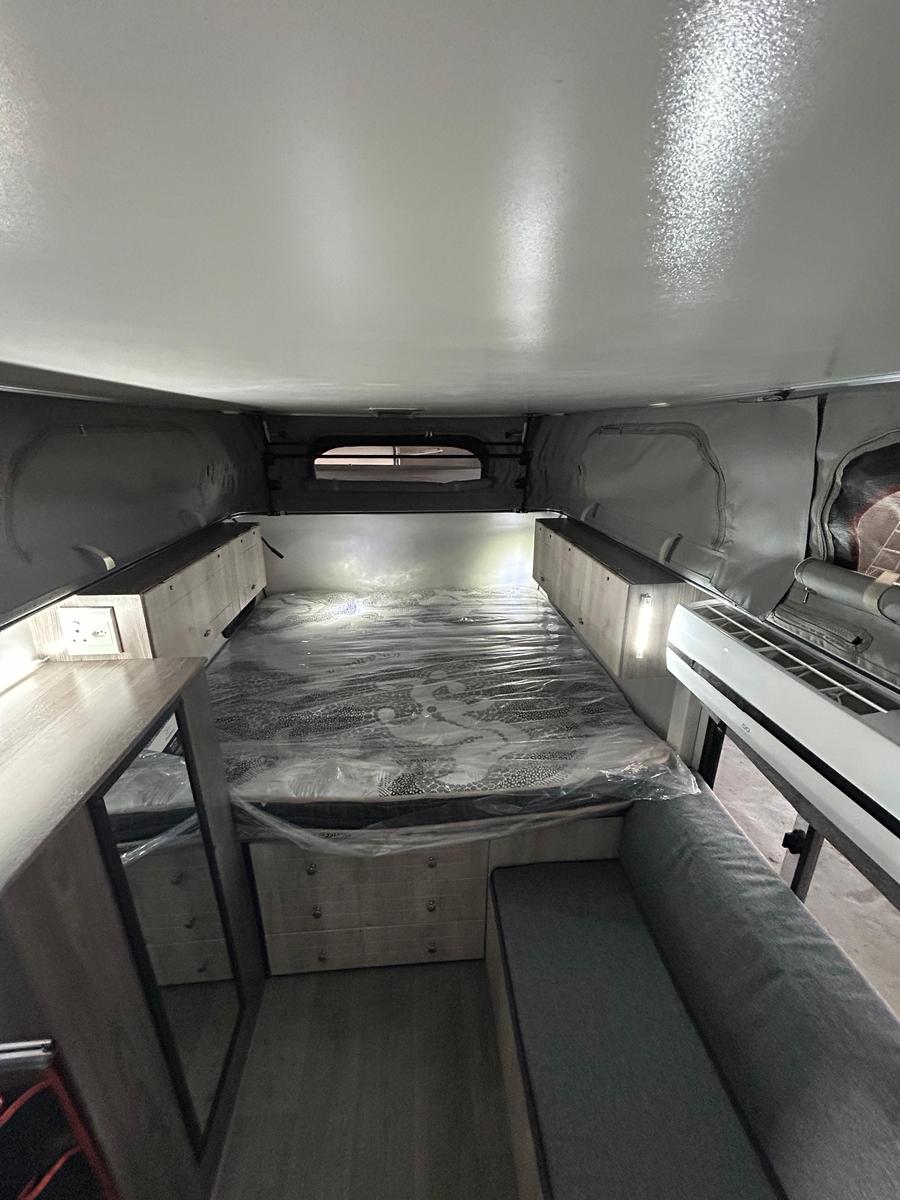

King size bed – 1 940mm long x 1 830mm wide (Fixed – no pull-out/fold-out manoeuvres required)

Bench seat with back rest (Sufficient seating for 2 adults)

Sliding windows (with insect screens) 1 above seating area and 2 at the head of the bed

Geyser – Hansen 15litre gas and 220volt (connected to the kitchen mixer tap)

Water pump – Dometic pressure pump

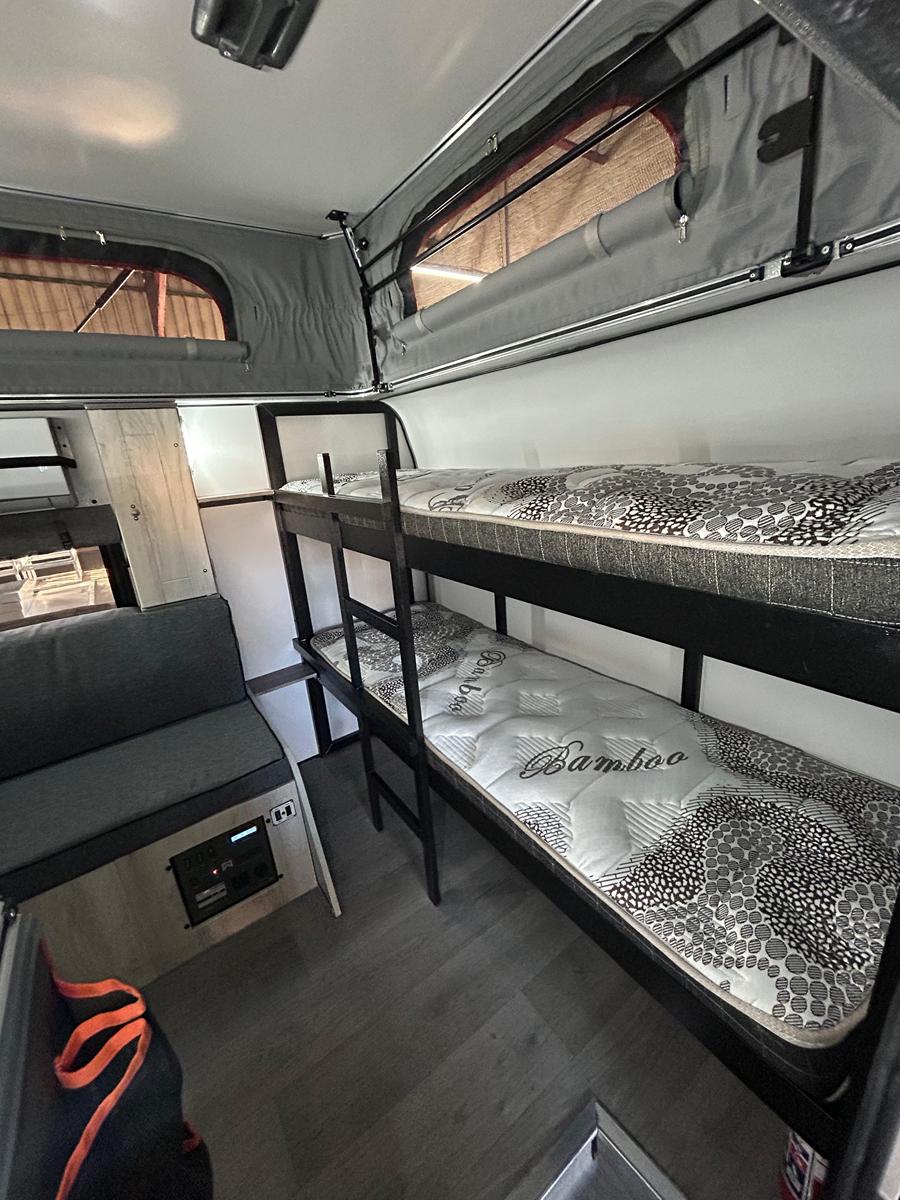

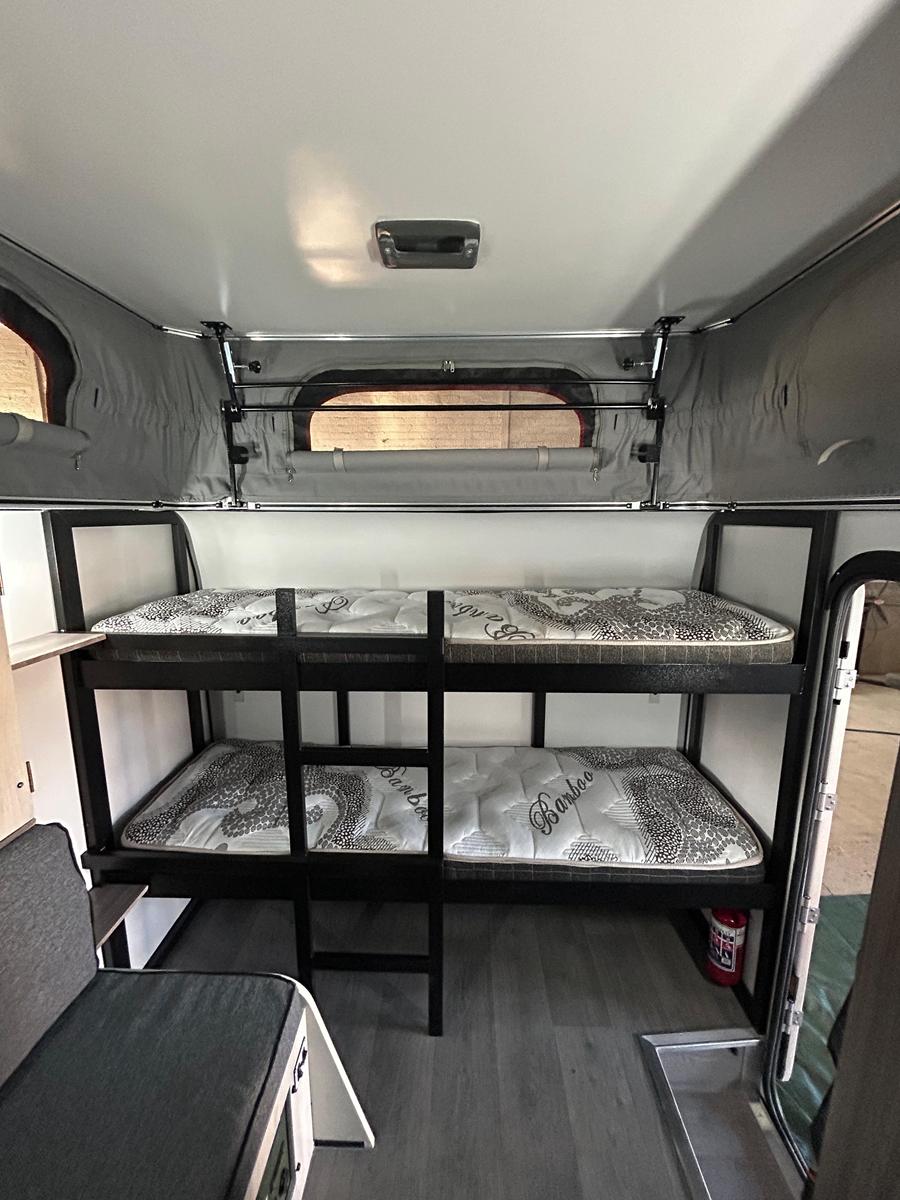

Bunk beds (2 beds that are 1.8m long x 0.6m wide)

Storage space includes: wall units above bed on left and right hand sides; 3-drawer cabinet under bed; narrow utility cupboard in seating area; removable storage bag above battery

Spare wheel carrier hinges down for ease of access (spare wheel supplied)

2 x 20 litre Jerry cans

2 x 3kg Gas bottles

2 x 70 litre Water tanks

Pantry with fold-down top; provision for 6 bottles, 4 glasses (supplied) and ample storage

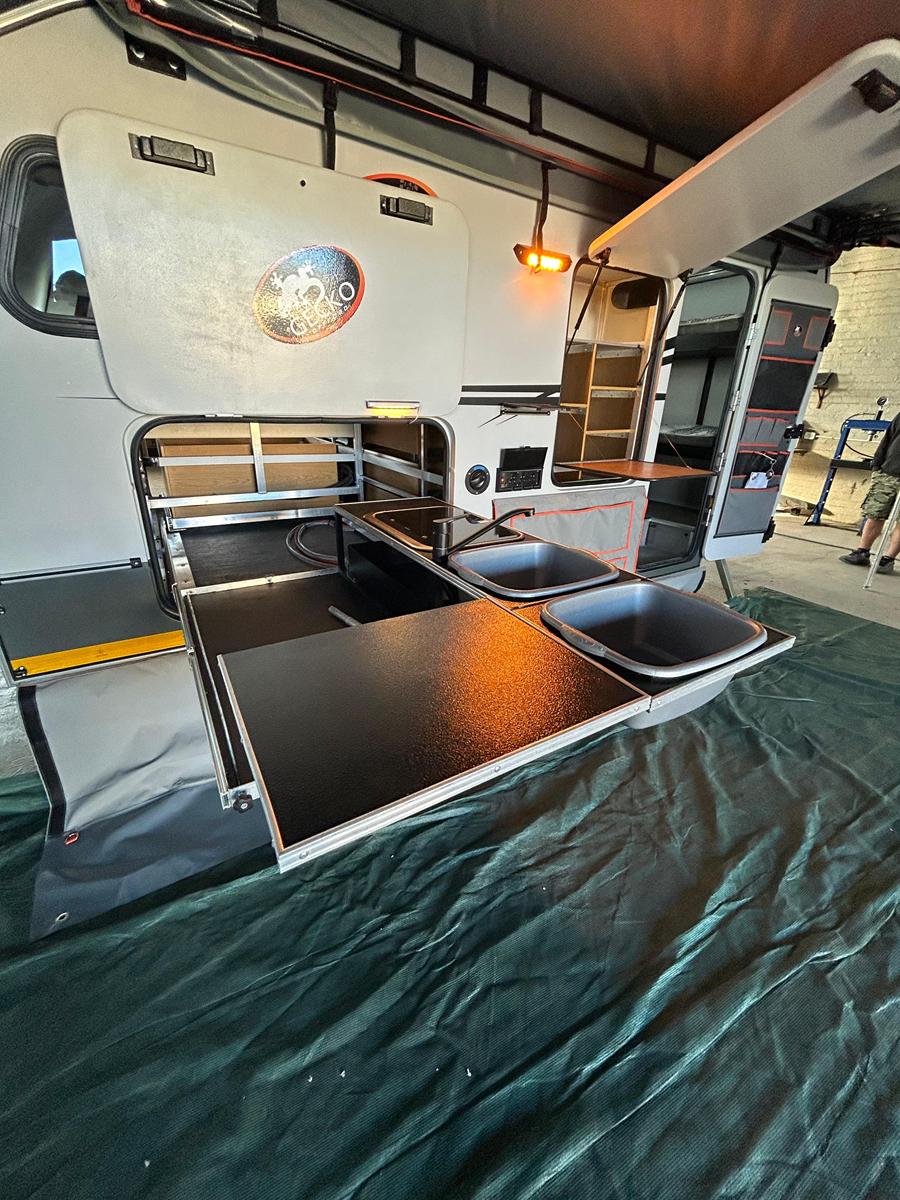

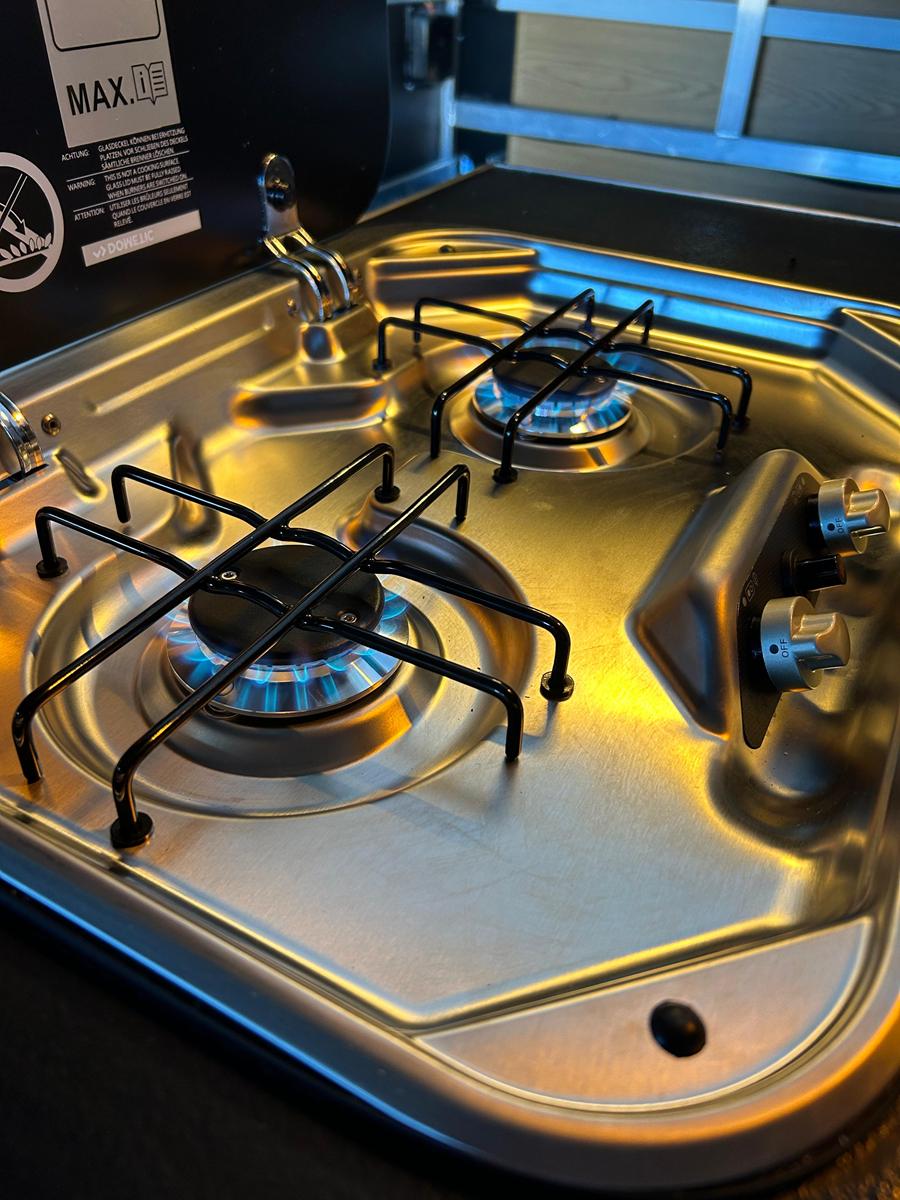

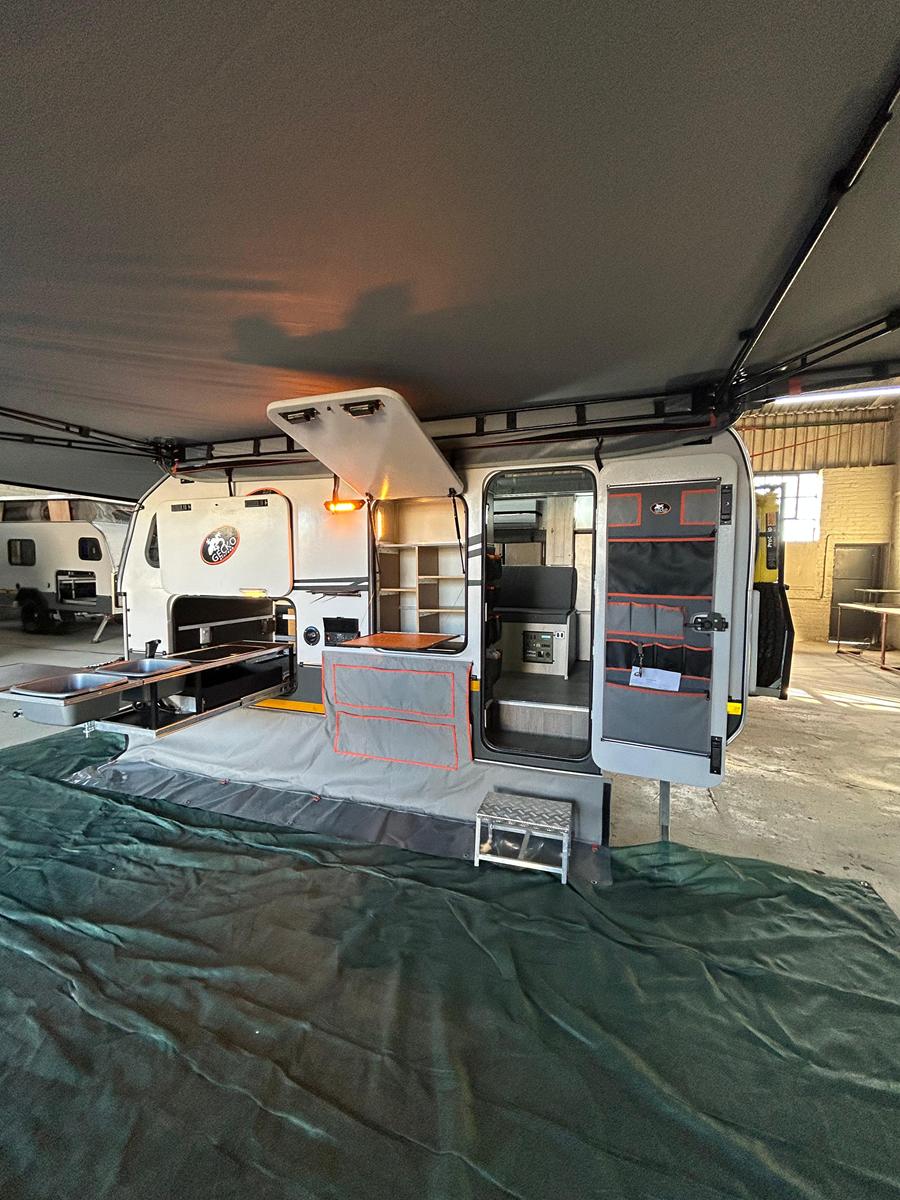

Pull-out kitchen unit with 180kg runner and hot and cold water; 2 x wash-up basins; 1 x mixer tap; Dometic 2 plate gas stove with glass lid; space for 90 litre National Luna fridge/freezer (not supplied); crockery drawer with 12 piece melamine set and 4 porcelain coffee cups

Entrance door has a mounted cutlery bag with 16 piece stainless steel cutlery set plus 4 steak knives and provision for additional utensils

Utility storage drawer/Duiwels Laai, with 90kg runner (accessed from outside) for chairs, larger items and camping table (supplied)

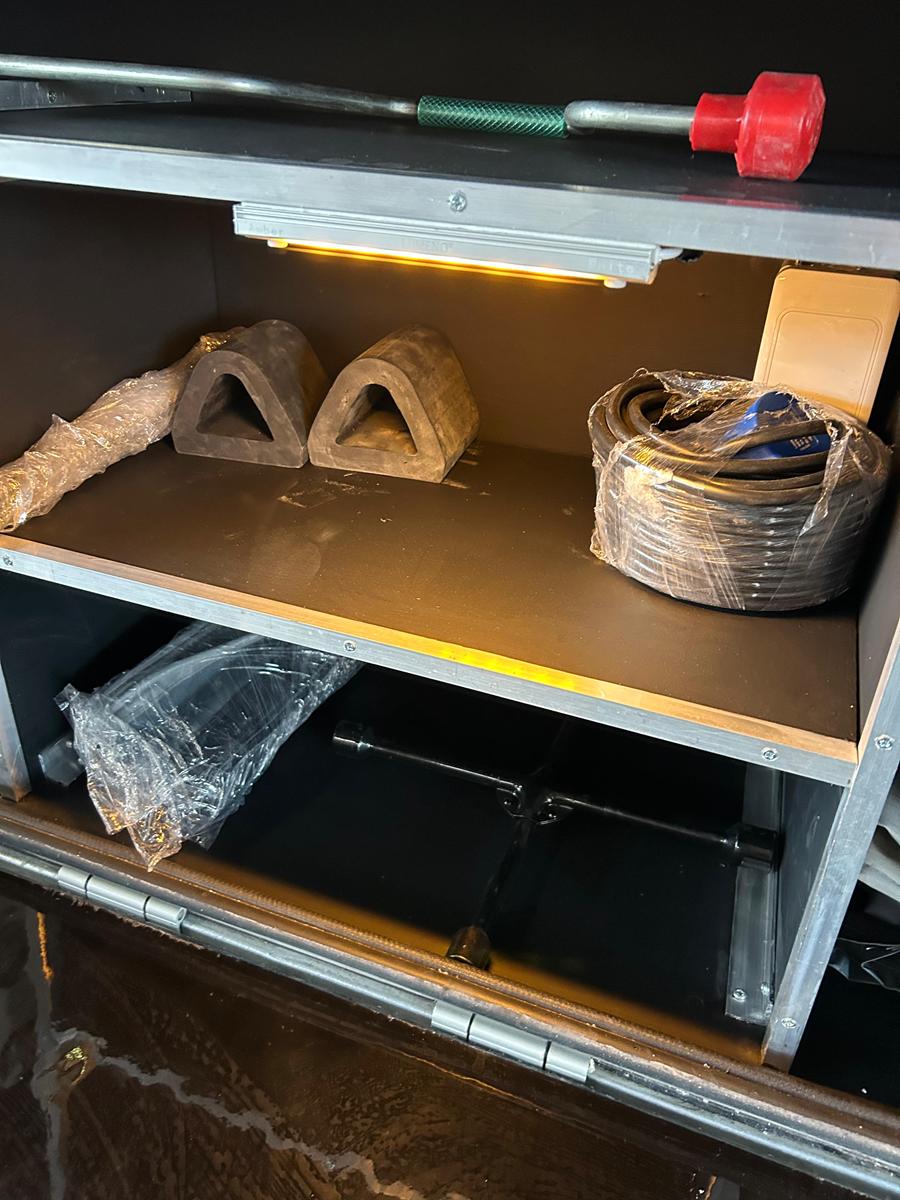

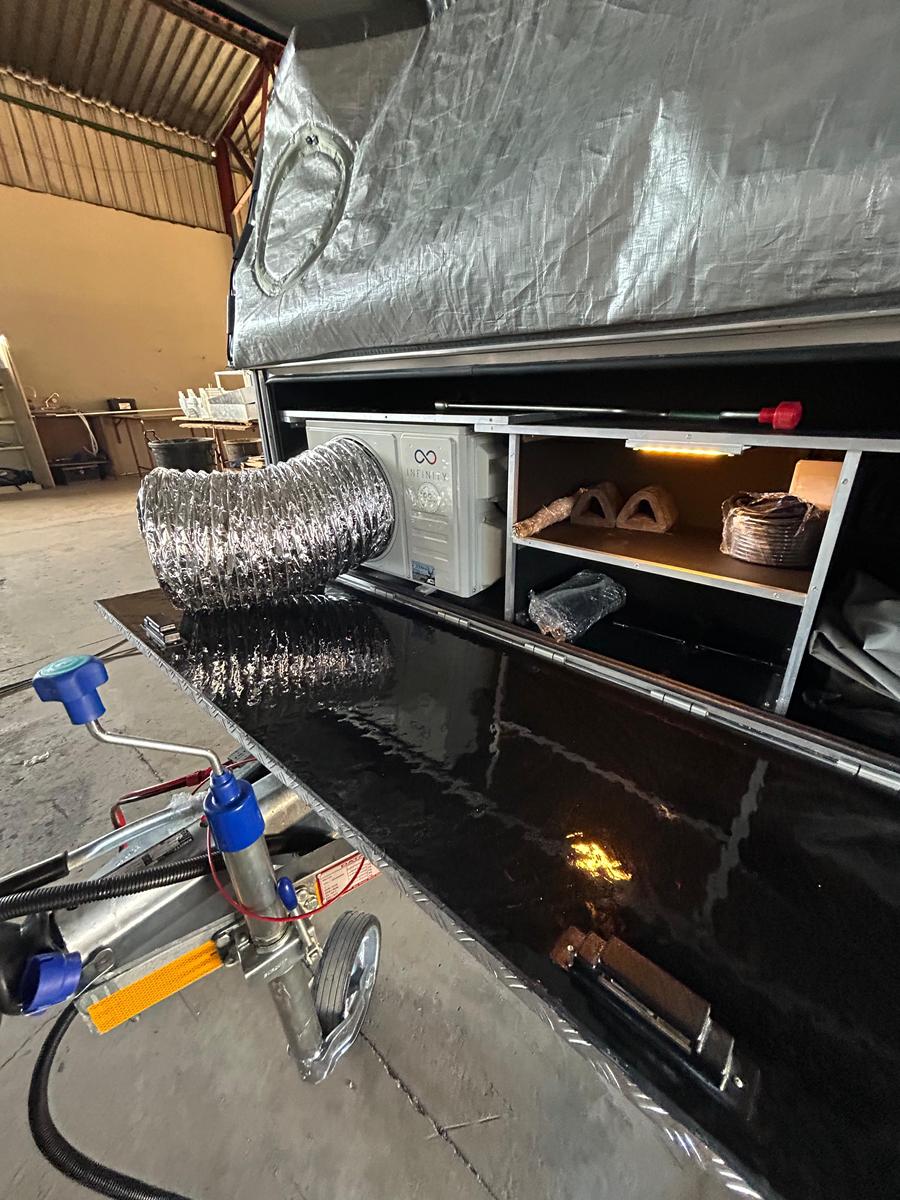

Front load box; extra large storage for tent poles, tent accessories and various camping necessities

Front load box travel blanket for stone chip damage protection

Additional accessories supplied as standard:

– 20m 220v Power cable

– emergency triangle

– spare wheel spanner

– outrigger jack

– aluminium caravan step

– wheel spanner

– 2 x wheel chocks

– peg hammer

– bracing lines

– pegs and spade

Gecko Offroad Logo

Optional Extras

Side Walls

Front Walls

Verandah Extension

Verandah Extension Side Walls

Two Add-A-Room options available – Option 1: an Add-A-Room 2.0m long x 2.4m wide that fits on the left-hand side of the tent only. Option 2: Add-A-Room 2.0m long x 2.4m wide that fits on the right-hand side of the tent only.

Entrance Door Insect Screen

Pantry Storage Bags (Set of 9)

Vegetable Drawer

Stove Windshield

Bathroom Utility Bag (Shoebag)

Entrance Utility Bag

Coupler Lock

Kettle Top

Camp Table Bracket

Snappy Chef

Kitchen Drying Top

Additional Battery

Aircon Kit

Roll-up Hose

Solar Panel

Weather Screen

Walex Portapak loo sachets

Smart Space square pots and frying pan

Gecko Offroad reserves the right to alter/amend these specifications at their discretion

WE CREATE CARAVANS YOU CAN EXPLORE WITH

The Gecko Xtreme allows you to take on epic adventures into distant and rugged terrain knowing you’ll have what it takes.
